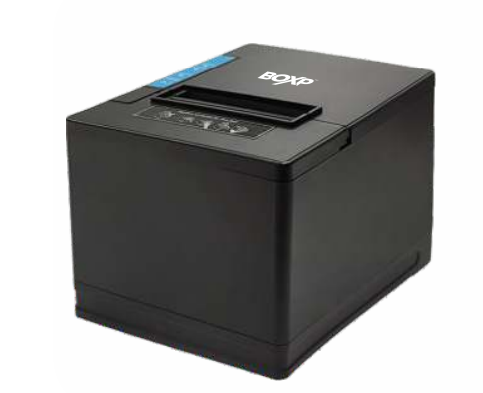

Compact design, easy to load paper
Supports multiple 1D barcode and QR code printing
Printer status monitoring function
Printing queuing ticket function
Supports bitmap download and print

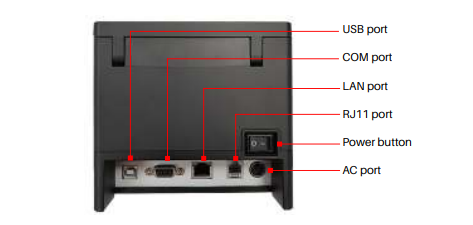

Supports different interface combinations
Up to 300 mm/s high-speed, low-noise printing
48 or 80mm adjustable paper separator
150KM long life printer head
Wall mounting supported
Support different interface combination
Up to 300mm/s high speed, low noise printing
48 or 80mm adjustable paper separator for option
150KM long life printer head
Supporting wall mounting
SPECIFICATION
| MODEL | |
| Model | BR88UE / BR88UB / BR88UW |
| Interface | |
| BR88UE | USB + LAN |
| BR88UB | USB + Bluetooth |
| BR88UW | USB + WiFi |
| Power Supply | |
| Input | AC 100V–240V, 50–60Hz |
| Output | DC 24V / 2.5A |
| Cash Drawer | DC 24V / 1A |
| Printer Head & Cutter | |
| Printer Head Lifespan | 150 KM |
| Cutter | Auto Cutter |
| Sensors | Paper Cutter, Cover Open, Cutter Jam, Paper Jam, Black Mark detection (optional) |
| Accessories | |
| Accessories | Data cable, Power adaptor, Power cord, Paper roller, CD, Manual, Paper separator (optional) |
| OS Supporting | |
| OS | iOS / Android / Windows / Linux |
| Safety Standards | |
| Certification | CE, FCC, RoHS |
| Printing Capability | |
| Printing Method | Direct Thermal Line |
| Resolution | 203 DPI |
| Printing Speed | 200 mm/s (UE), 260 mm/s (UB), 300 mm/s |
| Print Width | 72 mm |
| Graphics Printing | Supports bitmap download and print (Max 20K per bitmap) |
| Printing Command | ESC/POS Compatible |
| Barcode & Character | |
| 1D Barcode | UPC-A, UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128 |
| 2D Barcode | QR Code (Only specific models) |
| Character Size | Font A: 12×24 dots, Font B: 9×17 dots, Chinese: 24×24 dots |
| Codepage Support | PC437, PC850, PC860, PC863, PC865, Greek, Hebrew, Arabic, Thai, etc. |
| Media | |
| Paper Type | Thermal Roll Paper |
| Paper Width | 48mm / 52mm / 56mm / 64mm / 68mm / 76mm / 80mm |
| Paper Thickness | 0.06 – 0.08 mm |
| Paper Roll Diameter | Max 80 mm |
| Paper Separator | Supported |
| Physical | |
| Dimensions | 180 × 142 × 136 mm |
| Weight | 1.65 kg |
| Package Box | 228 × 215 × 165 mm |
| Carton | 475 × 445 × 358 mm / 15.65 kg |
| Language | Japanese / Korean optional, User-defined |
| Environment | |
| Working Temperature | 0°C – 45°C, 10%–80% RH |
| Storage Temperature | -20°C – 60°C, 10%–90% RH |
